Measuring & Fitting Guide

Step-by-Step Instructions

PLEASE GIVE EXACT MEASUREMENT – THE MAKERS ACCEPT NO RESPONSIBILITY FOR ERRORS IN ORDERING

Just read the easy to follow instructions below. Then all you’ll need is a steel tape measure, not cloth tape – they stretch. But take care, accurate sizes are essential.

“This table is a guideline showing the amount (in mm) that will be deducted for each width and drop provided as a recess measurement.”

Blind TypeWidth (mm)Drop (mm)
Vertical Blinds1010
Metal Venetian Blinds100
Wooden Venetian Blinds100
Roller Blinds50

Please Note:

  • All measurements should be provided in cm or mm.
  • All our blinds are made with a 5mm manufacturing tolerance (width & drop).
  • Always use a metal rule when taking the measurements. Cloth ones can stretch giving inaccurate measurements.
  • Recess Size

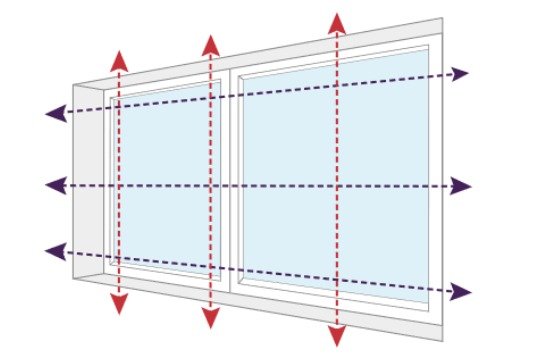

  1. This is the measurement you need to make if the blind needs to fit inside the window recess. Measure the width and the drop in three different positions ensuring you provide us with the smallest measurement.
  2. We will make any necessary deductions to ensure the blind fits neatly within the recess of the window.
  • Outside Recess Size

3.  An exact size blind is also known as ‘pin width’ or ‘finished blind width’. This is the measurement you need to make if the blind needs to hang outside the recess overlapping the window. Decide how much you wish to overlap the recess at each side, we recommend at least 7.5cm at each side as well as the top and bottom so as to minimise as much external light as possible.

4.  Measure the width and the drop in three different positions ensuring you provide us with the smallest measurement. We will not make any deductions from the measurements provided.

Should you want to buy new louvres to use with your existing headrail, simply measure the length of the existing louvres from the very top of the material to the very bottom. We will not make any deductions from the measurements provided.

Additional information when measuring for roller blinds and day night blinds. Please note  that the cloth width will be 35-40mm narrower than the overall size. Further to this if you are side fixing it is important to always state this as an exact measurement.

Installation Guide

All blind types are listed on this page for your convenience. Here you can easily view, open, or download the measuring and installation guides in PDF format for each blind type. Having everything in one place makes it quick and simple to find the exact information you need before placing your order or starting installation.

15/ 25 Venetian Blinds

A classic blind option that provides excellent light control and a clean, modern look. Use the guide below for accurate measuring and easy installation.

35/ 50 Venetian Blinds

These Venetian blinds are ideal for larger windows, offering excellent light control and a bold, modern appearance. Follow the guide below for accurate measurements and smooth installation.

Faux Wood blind

A durable and stylish alternative to real wood blinds, perfect for everyday use. Follow the guide below to measure and install correctly.

Perfect Fit blind

Custom-fit blinds that sit perfectly in your window frame, offering style, privacy, and easy light control. Follow the guide below to measure and install easily.

Perfect Fit Shutter Blinds

Custom shutters that fit perfectly inside your window frame, giving a sleek look and complete control over light and privacy. Follow the guide below for simple measuring and installation.

Pleated blind

Elegant and easy-to-use blinds that let you control light and privacy with style. Follow the guide below to measure and install effortlessly.

Roller blind

A simple and stylish way to control light and privacy. Follow the guide below for easy measuring and installation.

Roman blind

Elegant and functional blinds that control light and privacy with ease. Use the guide below for simple measuring and installation.

Vertical blind

Ideal for wide windows and doors, these blinds let you control light and privacy easily. Follow the guide below for simple measuring and installation.

Wooden Venetian blind

Stylish and durable blinds that add a natural touch to your space. Use the guide below for easy measuring and installation.

Roman blind

Elegant and functional blinds that control light and privacy with ease. Use the guide below for simple measuring and installation.

Vertical blind

Ideal for wide windows and doors, these blinds let you control light and privacy easily. Follow the guide below for simple measuring and installation.

“Need Help?”

“If you’re unsure about measuring, we recommend using our professional measuring service. This ensures your blinds or shutters will fit perfectly – no guesswork required.”

Get a free Estimate?

Accurate measurements ensure your blinds or shutters fit perfectly. Follow these simple steps to measure your windows and send us the details. Don’t worry – it’s quick and easy, and we’ll guide you every step of the way!

Step-by-Step Instructions

Step 1: Measure Your Window

  • Use a metal measuring tape for best accuracy.

  • Measure the width of your window frame from left to right.

  • Measure the height of your window frame from top to bottom.

  • Take measurements in millimeters (mm).

  • Double-check all measurements to avoid errors.

Step 2: Write Down Your Measurements
  • Write clearly:
  • Window / Room Name
  • Width (mm)
  • Height (mm)
  • Blind or Shutter Type (if selected)
Step 3: Convert Measurements to PDF
  • You can use Word, Notes, or even paper.
  • If handwritten, take a clear photo or scan it.
  • Save or convert the file to PDF format.
  • Make sure all text and numbers are readable.

Step 4: Send Us Your Measurements

  • Click the button above to fill out the form and upload your PDF.

  • Once we receive it, our team will review your measurements and provide a free quote.

“Need Help?”
“If you’re unsure about measuring, we recommend using our professional measuring service. This ensures your blinds or shutters will fit perfectly – no guesswork required.”
